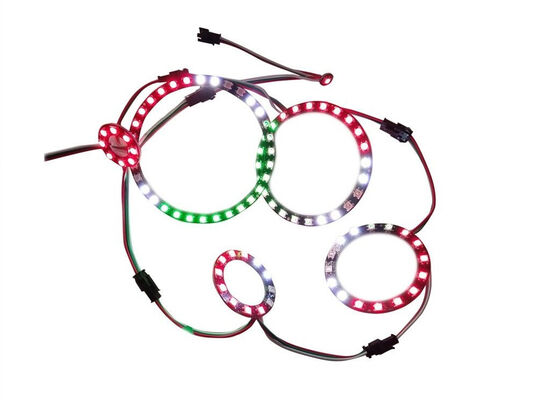

Digital Full Color RGB WS2812 SK6812 IC Pixel DC5V Circle Led Ring

Digital Full Color RGB WS2812 SK6812 IC Pixel DC5V Circle Led Ring
Digital Full Color RGB WS2812 SK6812 IC Pixel DC5V Circle Led Ring Digital Full Color RGB WS2812 SK6812 IC Pixel DC5V Circle Led Ring Digital Full Color RGB WS2812 SK6812 IC Pixel DC5V Circle Led Ring Digital Full Color RGB WS2812 SK6812 IC Pixel DC5V Circle Led Ring

تصویر بزرگ :  Digital Full Color RGB WS2812 SK6812 IC Pixel DC5V Circle Led Ring

جزئیات محصول:
محل منبع: شنژن چین
نام تجاری: Phenson
گواهی: CE/ROHS FCC
شماره مدل: حلقه دایره ال ای دی
پرداخت:
مقدار حداقل تعداد سفارش: 1 عدد
جزئیات بسته بندی: کارتن 530x420x280mm,40pcs/کارتن GW 19KG
زمان تحویل: 2-3 روز
شرایط پرداخت: T/T، وسترن یونیون، پی پال
قابلیت ارائه: 10000 عدد
توضیحات محصول جزئیات
نام محصول: حلقه دایره led WS2812B/SK6812 رنگ: Rgb
ولتاژ کاری: 5VDC نوع IC: WS2812B/SK6812
اندازه: 2mm 32mm 52mm 72mm 92mm 112mm برنامه: چراغ های عقب، چراغ های کابینت، چراغ های لبه،

Digital Full Color RGB WS2812 SK6812 IC Pixel DC5V Circle Led Ring





Circle Led Ring Specification

Model WS2812B-1leds 8leds 12leds 16leds 24leds 32leds
Voltage DC5V
Power 0.3W 2.4W 3.6W 4.8W 7.2W 9.6W
Led Color RGB,also can use the controller to reach many knids of effect
Inner Diameter / 16mm 36mm 56mm 76mm 96mm
Outer Diameter 12mm 32mm 52mm 72mm 92mm 112mm
Waterproof IP20,no waterproof
Installation Double outlet-100mm,use the screw to installation.

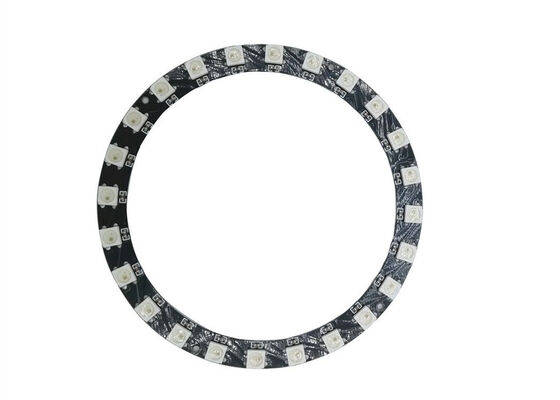

WS2812B/SK6812 Led Ring Light

-Use the WS2812B/SK6812 IC driver,can change many effects through led controller.

-1-32leds is a pack,also can sell only one size.

-Led Ring can use in Car led head light,the mirror light,and so on.



Application

1. lights, back lights, cabinet lights, edge light, architectural lights for corridor, canopy, archway, lights for path
and contour marking; etc.



They can be a good choice for lights for hotels, restaurants, night clubs, coffee / wine bars, shopping malls,
various shops, cinemas, beauty centers, office fronts, even lights for household kitchens or living rooms, etc.






Product Details

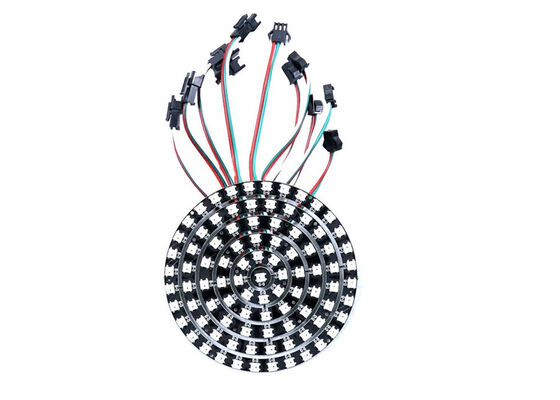

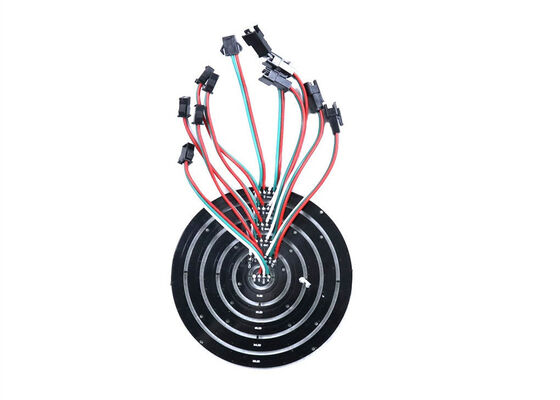

WS2812B/SK6812 led ring size

Digital Full Color RGB WS2812 SK6812 IC Pixel DC5V Circle Led Ring 0

Digital Full Color RGB WS2812 SK6812 IC Pixel DC5V Circle Led Ring 1



Digital Full Color RGB WS2812 SK6812 IC Pixel DC5V Circle Led Ring 2



Digital Full Color RGB WS2812 SK6812 IC Pixel DC5V Circle Led Ring 3
